No.441 Tensile stress analysis of perforated plate D=10, d=2.0D

複数の孔を有する板の引張応力解析例です。孔の直径は D=10mmで、孔の中心間の距離は d=20mmです。メッシュは六面体ソリッド要素で作成してあり、要素数は477,184要素です。
計算は静的陰解法の反復ソルバーを用いて行い MPP 6CPU を用いて22分かかりました。
参考文献 : 山崎 良一, 三浦基弘:光弾性実験構造解析,日刊工業新聞社 1997年8月29日初版, p.147 図6.32(b)

Keywords: Static Implicit LS-DYNA, Hexa Element, Mat_024(mild steel), Hole diameter D=10mm, distance between center of holes d=20mm, Total Number of Elements:477,184, Iterative solver 11, cpu time: 22min.

Tool: Hyper Mesh, LS-PrePost ver.4.3, LS-DYNA MPP Double Precision Win64 Revision.8.0.0

なお,本事例はサンプルであることをご了承下さい。

Jan-18-2016

 D10 d=2.0D

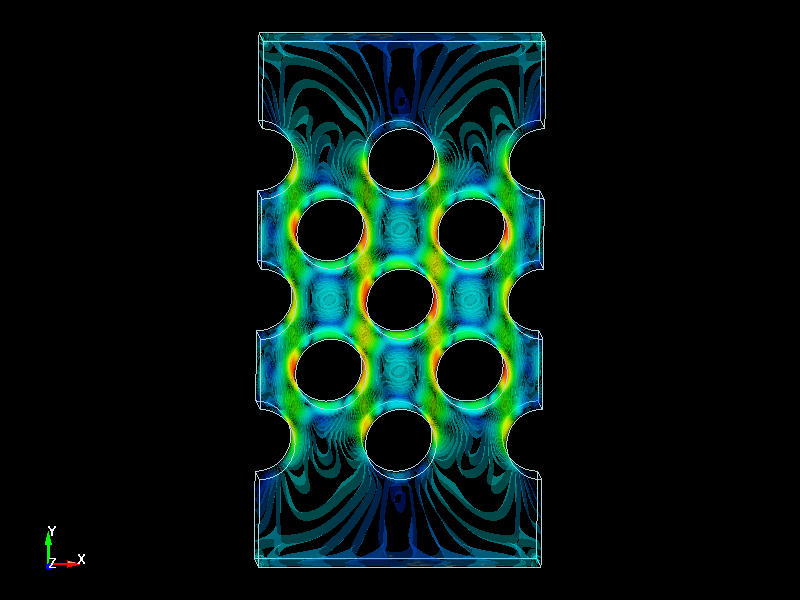

Fig.1 Effective Stress Distribution ( Tensile Load : 16.3 kN )

 D10 d=2.0D

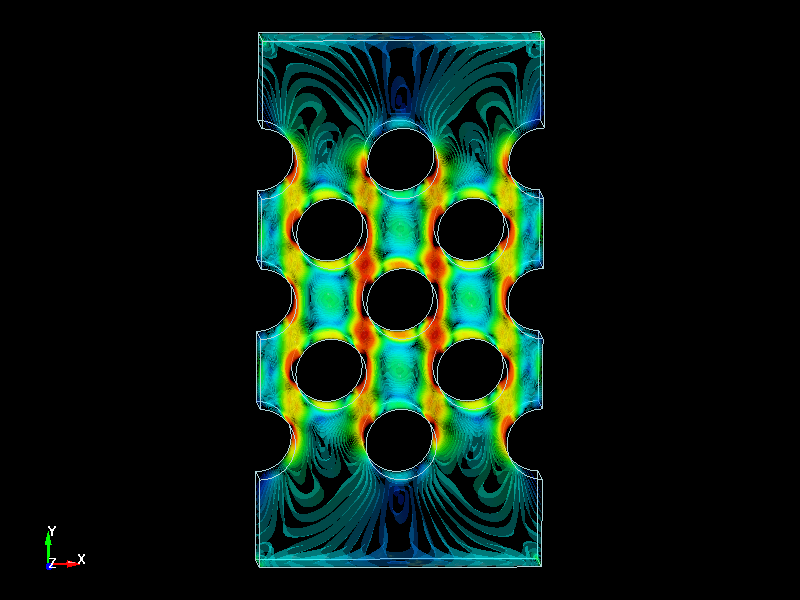

Fig.2 Effective Stress Distribution ( Tensile Load : 22.2 kN )

 D10 d=2.0D

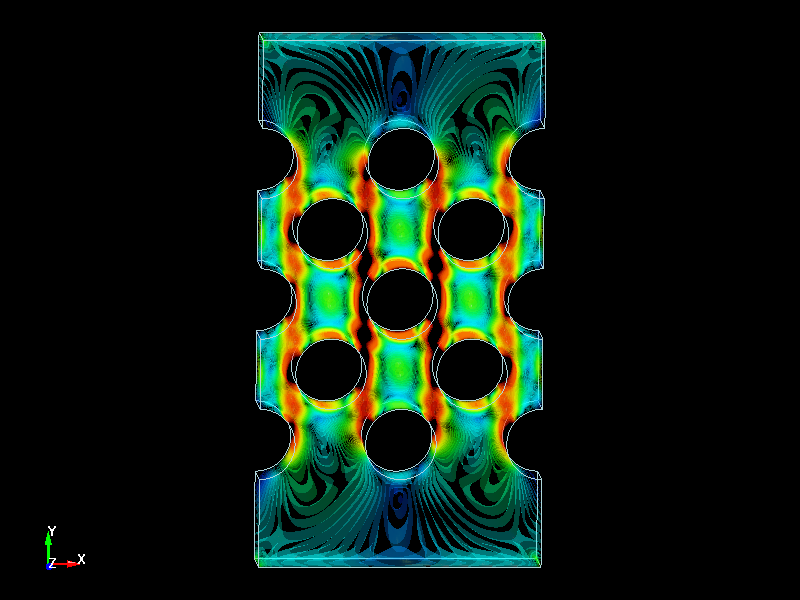

Fig.3 Effective Stress Distribution ( Tensile Load : 25.6 kN )

 D10 d=2.0D
Fig.4 Effective Stress Distribution ( Tensile Load : 27.9 kN )
