No.551 水中爆発における衝撃波伝播挙動のシミュレーション(DOC=10cm)

TNT爆薬10gが水中で爆発した際に発生する初期衝撃波の伝播挙動をStructured ALE Solver (S-ALE)を使用してシミュレーションを行った例を示します。爆薬が水深10cmで爆発したケースの結果を示します。

なお,本事例はサンプルであることをご了承下さい。

No.551 Simulation of Shock Wave Propagation Behavior in Underwater Explosion(DOC=10cm)

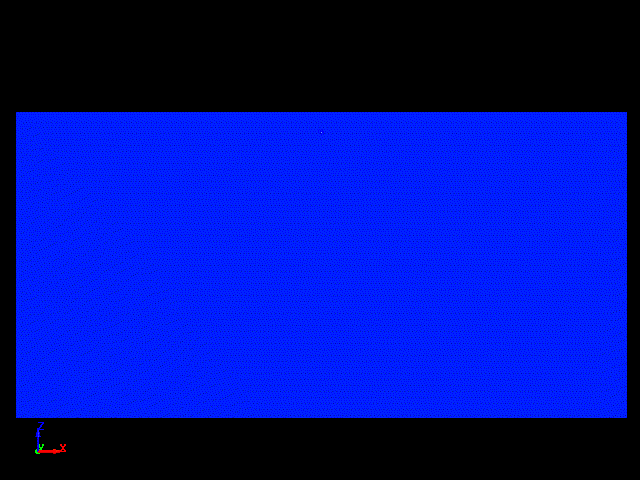

This is an example of simulation for the behavior of the initial shock wave propagation when 10g of TNT explosive charge explodes underwater. The Structured ALE Solver (S-ALE) are used. Here is a case where the explosive charge was located at a depth of 10 cm below the water surface.

Keywords: Shockwave propagation due to UNDEX (underwater explosion), Structured ALE, 3D, 1/2 model, TNT 10g, H.E shape = cubic, Depth of Charge = 10cm

Tools: LS-PrePost ver.4.9, LS-DYNA MPP Win64 R13.1.0

August 17, 2022 create a new entry

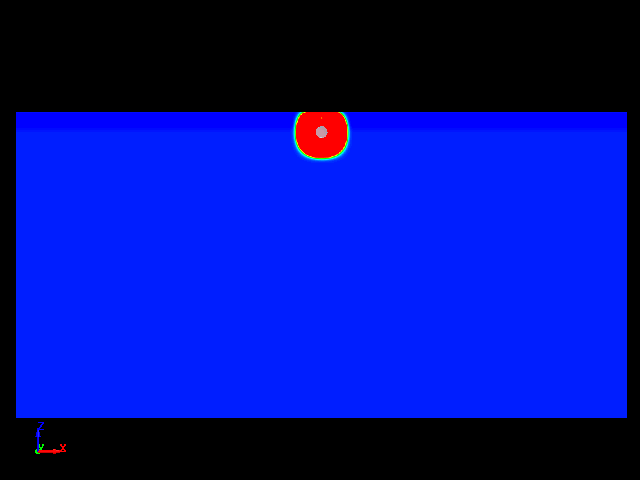

 shockwave propagation due to under water explosion
Fig.1 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.2 Shockwave propagation / Depth of Charge = 10cm

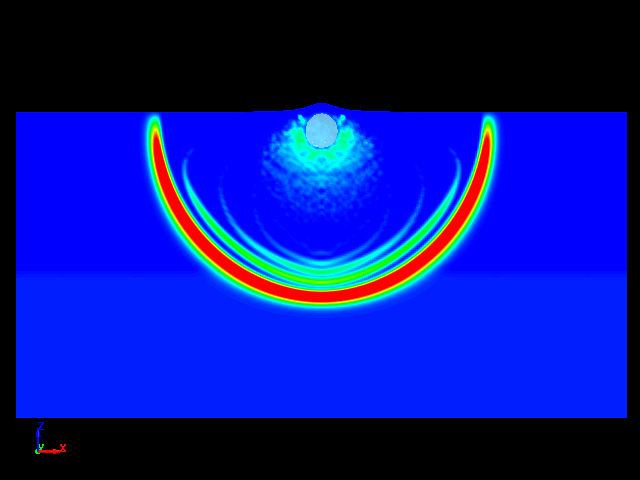

 shockwave propagation due to under water explosion
Fig.3 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.4 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.5 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.6 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.7 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.8 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.9 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.10 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.11 Shockwave propagation / Depth of Charge = 10cm

 shockwave propagation due to under water explosion
Fig.12 Shockwave propagation / Depth of Charge = 10cm
