No.518 アルミハニカムのXYせん断変形解析

例題146をリメイクしてLS-DYNA ver.R12.0.0でシミュレーションしたせん断変形解析の結果を掲載します。工学的にはあまり馴染みの無いせん断変形のシミュレーションの結果を掲載します。

XY Shear deformation behavior of aluminum honeycomb

Keywords: Honeycomb, shear deformation, damage model

Tool: LS-PrePost ver.4.8, LS-DYNA MPP Win64 R12.0

なお，本事例はサンプルであることをご了承下さい。

April 20, 2022 create a new entry

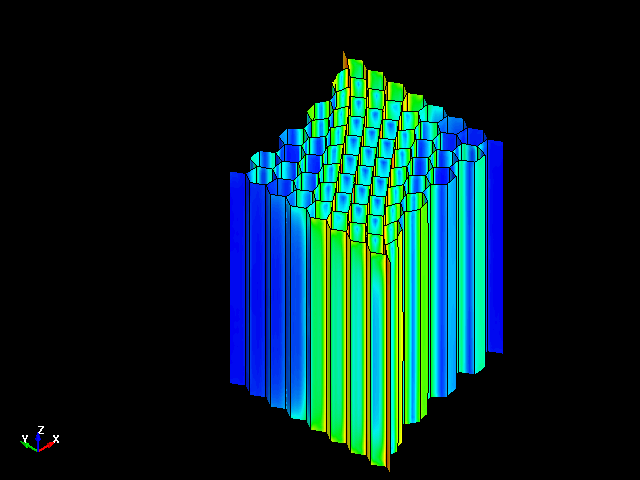

Fig.1 XY Shear deformation behavior of aluminum honeycomb

Fig.2 XY Shear deformation behavior of aluminum honeycomb

Fig.3 XY Shear deformation behavior of aluminum honeycomb

Fig.4 XY Shear deformation behavior of aluminum honeycomb

Fig.5 XY Shear deformation behavior of aluminum honeycomb

Fig.6 XY Shear deformation behavior of aluminum honeycomb

Fig.7 XY Shear deformation behavior of aluminum honeycomb

Fig.8 XY Shear deformation behavior of aluminum honeycomb

Fig.9 XY Shear deformation behavior of aluminum honeycomb

Fig.10 XY Shear deformation behavior of aluminum honeycomb

Fig.11 XY Shear deformation behavior of aluminum honeycomb

Fig.12 XY Shear deformation behavior of aluminum honeycomb

Fig.13 XY Shear deformation behavior of aluminum honeycomb
