No.472 Torsional Failure Simulation of Brittle Material using Adaptive Solid to SPH

例題153の解析モデルに ADAPTIVE_SOLID_TO_SPH 機能を追加して脆性破壊のねじり試験解析を行いました。破壊したソリッド要素からSPH要素が飛び出して飛散物として計算が続行されます

Keywords: SPH, ADAPTIVE SOLID TO SPH, debris simulation, MAT_ADD_EROSION, ERODING_CONTACT,LS-DYNA R11

Tool: LS-PrePost ver.4.6, LS-DYNA MPP Single Precision Win64 R11

なお,本事例はサンプルであることをご了承下さい。

Nov-03-2018

 SPH / Torsional Failure analysis
Fig.1 SPH / Torsional Failure of Brittle Material / movie 1

 SPH / Torsional Failure analysis
Fig.2 SPH / Torsional Failure of Brittle Material / movie 2

 SPH / Torsional Failure analysis
Fig.3 SPH / Torsional Failure of Brittle Material / initial state / screen shot

 SPH / Torsional Failure analysis

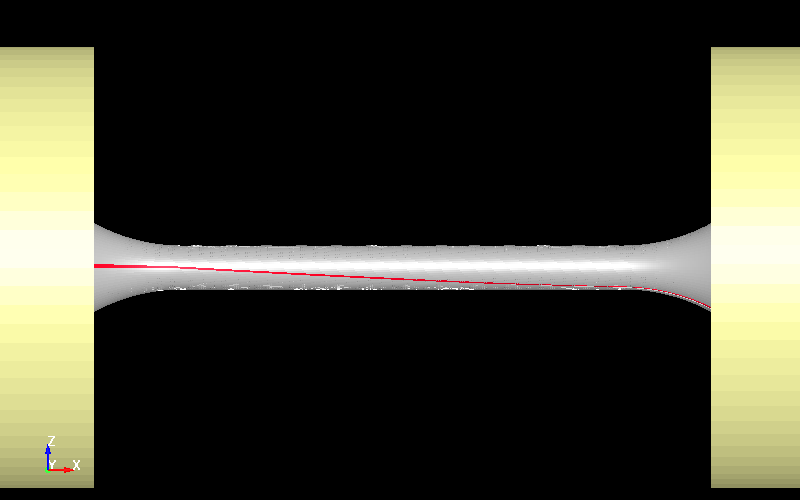

Fig.4 SPH / Torsional Failure of Brittle Material / twisting brittle material / screen shot

 SPH / Torsional Failure analysis
Fig.5 SPH / Torsional Failure of Brittle Material / starting failure / screen shot

 SPH / Torsional Failure analysis

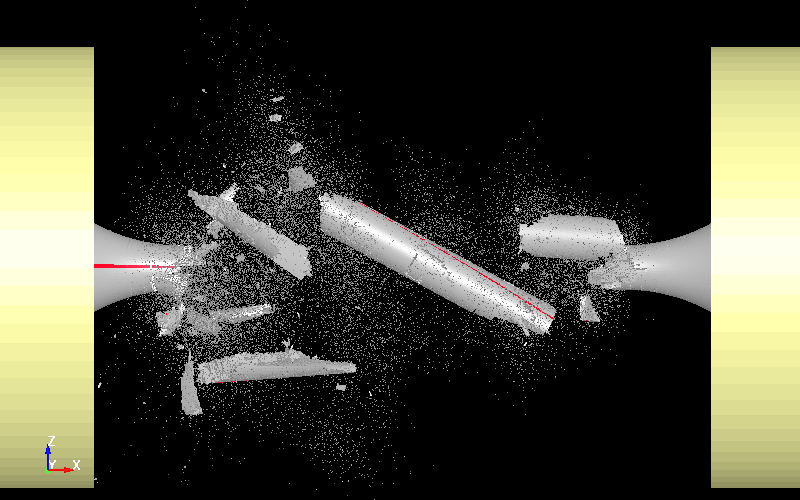

Fig.6 SPH / Torsional Failure of Brittle Material / breaked / screen shot

 SPH / Torsional Failure analysis
Fig.7 SPH / Torsional Failure of Brittle Material / breaked / screen shot

 SPH / Torsional Failure analysis
Fig.8 SPH / Torsional Failure of Brittle Material / breaked / screen shot

 SPH / Torsional Failure analysis
Fig.9 SPH / Torsional Failure of Brittle Material / breaked / screen shot

 SPH / Torsional Failure analysis

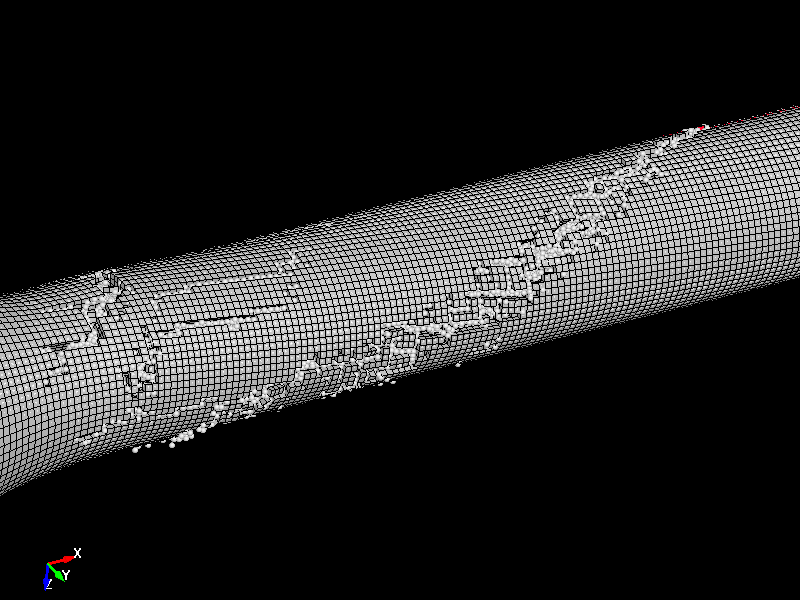

Fig.10 SPH / Torsional Failure of Brittle Material / activated sph elements after solid elements failure / screen shot

 SPH / Torsional Failure analysis

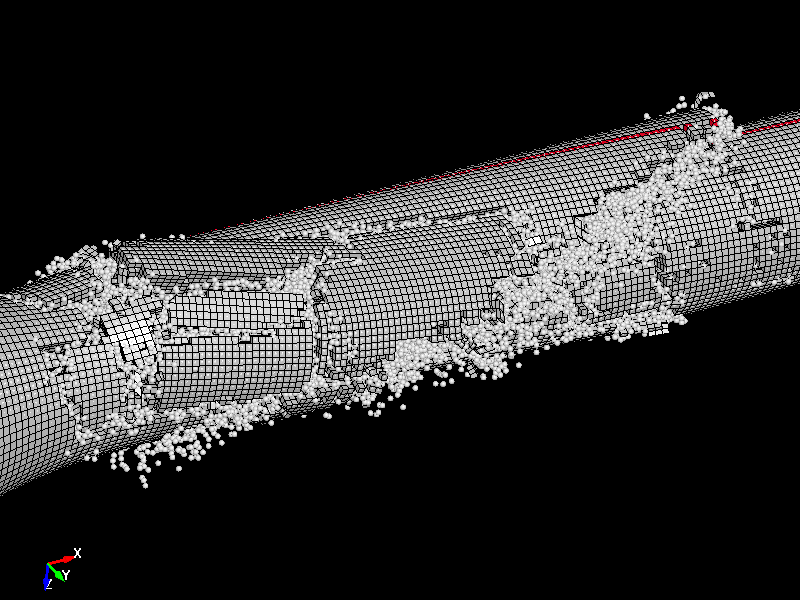

Fig.11 SPH / Torsional Failure of Brittle Material / moving sph elements after failure / screen shot

 SPH / Torsional Failure analysis
Fig.12 SPH / Torsional Failure of Brittle Material / moving sph elements after failure / screen shot
