No.242 Car2Car Small Overlap Crash Simulation / Overlap ratio 37%

例題236で実施したNCAC/Topcrunch Caravan Car2Car 正突モデルで、オーバーラップ比率を50%以下とするSmall Overlap Crash Simulation (SOCS)を実施しました。
本例題のオーバーラップ率は37%です。(SOCS Ratio 37)
なお，本解析例はサンプルであることをご了承下さい。

small overlap crash ratio 37%/ ls-dyna

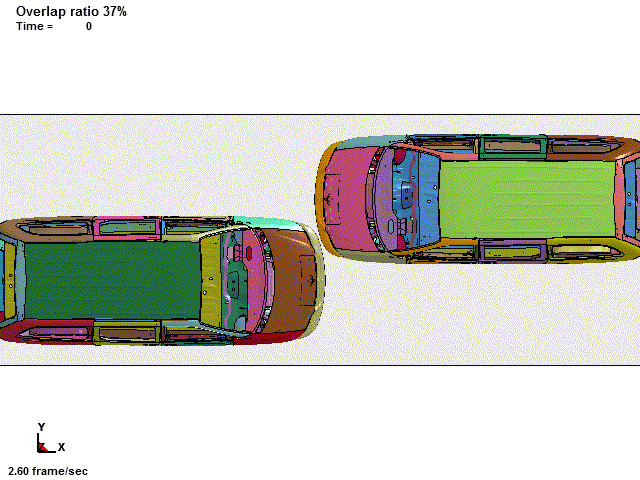

図 1　Car 2 Car Small Overlap Crash Simulation / overlap ratio 37%

small overlap crash ratio 37%/ ls-dyna

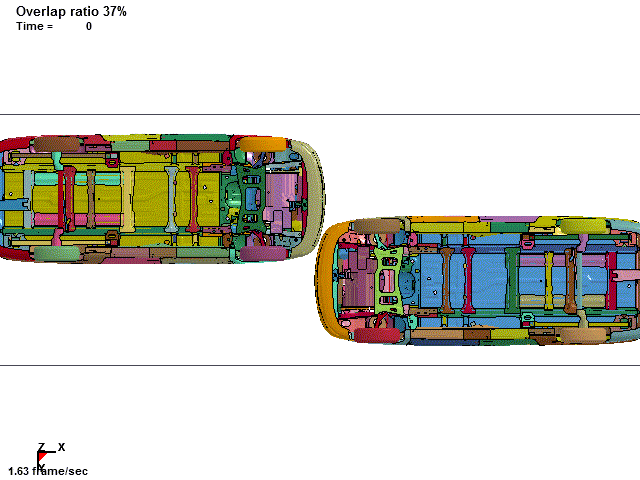

図 2　Car 2 Car Small Overlap Crash Simulation / overlap ratio 37%

small overlap crash ratio 37%/ ls-dyna

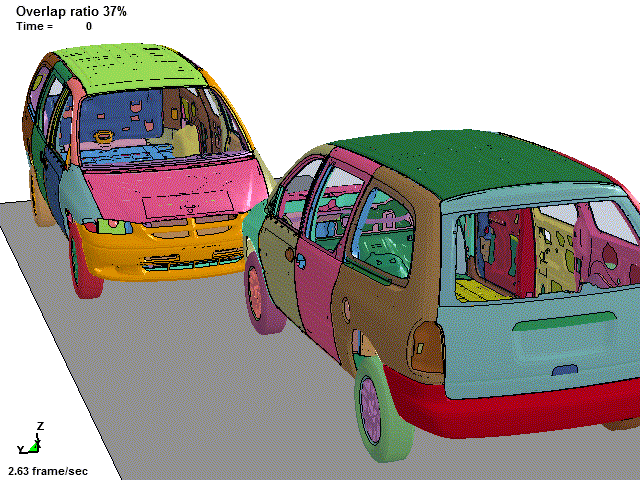

図 3　Car 2 Car Small Overlap Crash Simulation / overlap ratio 37%
